Exploring Electronics: Fun and Easy Arduino Projects for All Skill Levels

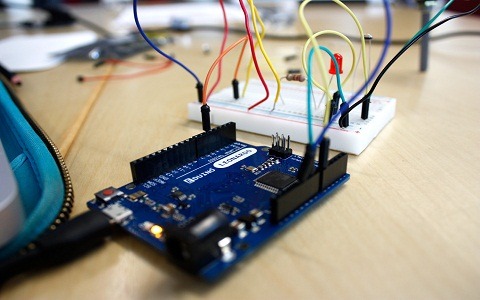

Arduino Uno Projects

Dive into the World of Arduino!

At Delmarva Makerspace, we love helping our members explore new technologies and expand their skills. Arduino, an open-source electronics platform, offers endless possibilities for creating interactive projects. Whether you’re a complete beginner or an experienced maker, Arduino provides a fun and educational way to dive into electronics and programming. This guide features a range of projects suitable for all skill levels to get you started.

What is Arduino?

Arduino is a versatile microcontroller platform designed for building digital devices and interactive objects. With its simple programming environment and wide variety of compatible sensors and components, Arduino is perfect for both novices and experts. You can use it to control lights, motors, sensors, and more, enabling you to bring your creative ideas to life.

Essential Components

Before starting your Arduino journey, familiarize yourself with these essential components:

  1. Arduino Board: The heart of your project. Popular models include the Arduino Uno and Arduino Nano.
  2. Breadboard: A reusable platform for prototyping circuits without soldering.
  3. Jumper Wires: Wires used to connect components on the breadboard.
  4. Resistors, LEDs, and Buttons: Basic components for simple projects.
  5. Sensors: Devices like temperature sensors, light sensors, and motion detectors that can add interactivity to your projects.

Beginner Projects

1. Blink an LED

A classic first project that introduces you to the basics of Arduino programming.

  • Materials Needed: Arduino board, LED, resistor (220Ω), breadboard, jumper wires.
  • Instructions:
    • Connect the LED to pin 13 on the Arduino board through the resistor.
    • Use the Arduino IDE to write a simple program to turn the LED on and off.
    • Upload the code to the Arduino and watch the LED blink!

Code Example:

void setup() {
  pinMode(13, OUTPUT);
}

void loop() {
  digitalWrite(13, HIGH);  // Turn the LED on
  delay(1000);             // Wait for a second
  digitalWrite(13, LOW);   // Turn the LED off
  delay(1000);             // Wait for a second
}

Intermediate Projects

2. Temperature and Humidity Monitor

Monitor environmental conditions with a DHT11 sensor.

  • Materials Needed: Arduino board, DHT11 sensor, breadboard, jumper wires, LCD display (optional).
  • Instructions:
    • Connect the DHT11 sensor to the Arduino.
    • Use the DHT library in the Arduino IDE to read data from the sensor.
    • Display the readings on the serial monitor or an LCD display.

Code Example:

#include "DHT.h"

#define DHTPIN 2
#define DHTTYPE DHT11
DHT dht(DHTPIN, DHTTYPE);

void setup() {
  Serial.begin(9600);
  dht.begin();
}

void loop() {
  float humidity = dht.readHumidity();
  float temperature = dht.readTemperature();

  if (isnan(humidity) || isnan(temperature)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  Serial.print("Humidity: ");
  Serial.print(humidity);
  Serial.print(" %\t");
  Serial.print("Temperature: ");
  Serial.print(temperature);
  Serial.println(" *C");
  delay(2000);
}

Advanced Projects

3. Home Automation with Arduino

Control home appliances using a relay module and an Arduino board.

  • Materials Needed: Arduino board, relay module, breadboard, jumper wires, household appliances (e.g., lamp).
  • Instructions:
    • Connect the relay module to the Arduino.
    • Write a program to control the relay based on sensor inputs or a schedule.
    • Integrate with other sensors or a remote control system for added functionality.

Code Example:

#define RELAY_PIN 7

void setup() {
  pinMode(RELAY_PIN, OUTPUT);
}

void loop() {
  digitalWrite(RELAY_PIN, HIGH);  // Turn the relay on
  delay(5000);                    // Wait for 5 seconds
  digitalWrite(RELAY_PIN, LOW);   // Turn the relay off
  delay(5000);                    // Wait for 5 seconds
}

Tips for Successful Projects

  1. Start Small: Begin with simple projects and gradually tackle more complex ones as you gain confidence.
  2. Experiment and Modify: Don’t be afraid to experiment with the code and hardware. Learning often comes from trying new things.
  3. Troubleshoot: If something doesn’t work, check your connections, review your code, and use the serial monitor to debug.
  4. Join the Community: Engage with other Arduino enthusiasts online or at Delmarva Makerspace. Sharing knowledge and experiences can greatly enhance your learning.

Recommended Resources

  1. Arduino Project Hub: A great platform to find and share Arduino projects. Visit: Arduino Project Hub
  2. Adafruit Learning System: Comprehensive tutorials on Arduino and other electronics projects. Explore: Adafruit Learning System
  3. SparkFun Electronics: Offers tutorials, kits, and components for Arduino projects. Check it out: SparkFun

Conclusion

Arduino opens up a world of possibilities for makers of all skill levels. From simple LED blinking projects to complex home automation systems, there’s always something new to learn and create. At Delmarva Makerspace, we’re excited to see what you’ll build next. Happy making!
